Fire Tender

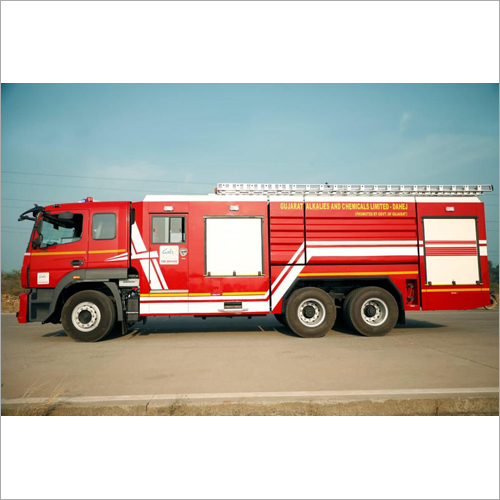

DCP System available in 250 ï 1000 Kgs Capacity CO2 System available in multiples of 22.5 Kgs Capacity WATER Tank 2000-4500 ltr FOAM TANK- 500 DCP Vessels made as per ASME Code Section VIII of ASTM SA -516 (Grade 70) Plates Superstructure options include Mild Steel, Stainless Steel, Extruded Aluminium Profiles & GRP DCP System mounted on Subframe MCD France made Aluminium Roller Shutters with LED Lighting optionally available

CHASSIS - 7 -16 ton GVW Tata, Ashok Leyland Eicher, Bharat Benz PUMP TYPE- Normal / High Low Pressure.The pump shall be latest addition to NFPA 1901 and EN1028 rear mounted, high low pressure CE & UL marked and UL classified with priming arrangement. PUMP PRESSURE- Normal 1800 - 2000 LPM @ 7 kg/cm2 / 200 - 250 Lpm @ 30 kg/cm2 PTO - Full Torque Drive Line (Ratio 1:1:27) WATER TANK (MS/SS) - 1000-4500 L (Thickness of tank sheet 5 mm) OPTIONAL EQUIP. & ACCESSORIES- Monitor / Cable winch /Locker Mounted Light Mast as per customer requirement EQUIPMENTS STANDARD- IS:950 / customer requirements. LOCKER- MS/AL/SS AI. rolling shutters/Door type

CHASSIS- 16 ï 19 ton GVW Tata/ Eicher/ Ashok Leyland GENERATOR- 15-25 kwA driven by PTO LIGHT MAST- 4m ï 6m Pneumatic Light Mast Vertical or Roof mounted Tilt & Turn with remote control FLOOD LIGHTS- Halogen / led WINCH- Electrical or Hydraulic 3 to 6 Ton pulling & lifting EQUIPMENT STORAGE- Roll-on-Roll-off type push & pull trays for storage or Separate arrangement of tools as per customer requirements SPECIAL EQUIP- Disaster, Hazmat & Rescue equipment MOUNTED EQUIP.(OPT.)- Hydraulic Crane-5 ton lifting ACCESSORIES STANDARD- IS:949 or as per customer requirements BODY & LOCKERS- MS/AL/SS AI.rolling shutters/Door type

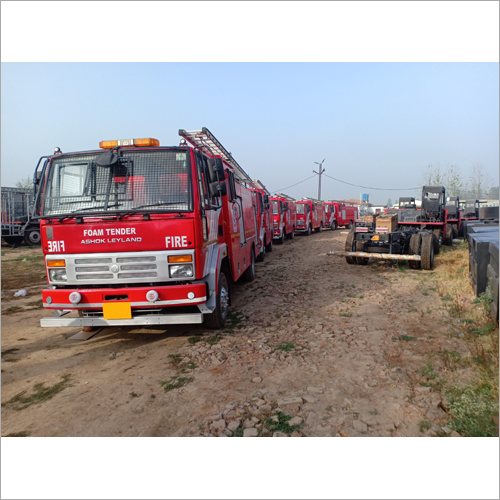

CHASSIS- 7 -16 ton GVW Tata, Ashok Leyland Eicher, Bharat Benz PUMP TYPE- Normal / High Low Pressure.The pump shall be latest addition to NFPA 1901 and EN1028 rear mounted, high low pressure CE & UL marked and UL classified with priming arrangement. PUMP - PRESSURE Normal 1800 - 2000 LPM @ 7 kg/cm2 / 200 - 250 Lpm @ 30 kg/cm2 PTO- Full Torque Drive Line (Ratio 1:1:27) WATER TANK (MS/SS)- 1000-4500 L (Thickness of tank sheet 5 mm) FOAM TANK (SS) - 500 LTR ( Thickness of tank sheet 4 mm) OPTIONAL EQUIP. & ACCESSORIES- Monitor / Cable winch /Locker Mounted Light Mast as per customer requirement EQUIPMENTS STANDARD - As per IS standard LOCKER - MS/AL/SS AI. rolling shutters/Door type

CHASSIS- 16 ï 19 ton GVW Tata/ Eicher/ Ashok Leyland GENERATOR- 15-25 kwA driven by PTO LIGHT MAST- 4m ï 6m Pneumatic Light Mast Vertical or Roof mounted Tilt & Turn with remote control FLOOD LIGHTS- Halogen / led WINCH- Electrical or Hydraulic 3 to 6 Ton pulling & lifting EQUIPMENT STORAGE- Roll-on-Roll-off type push & pull trays for storage or Separate arrangement of tools as per customer requirements SPECIAL EQUIP- Disaster, Hazmat & Rescue equipment MOUNTED EQUIP.(OPT.)- Hydraulic Crane-5 ton lifting ACCESSORIES STANDARD- IS:949 or as per customer requirements BODY & LOCKERS- MS/AL/SS AI.rolling shutters/Door type
